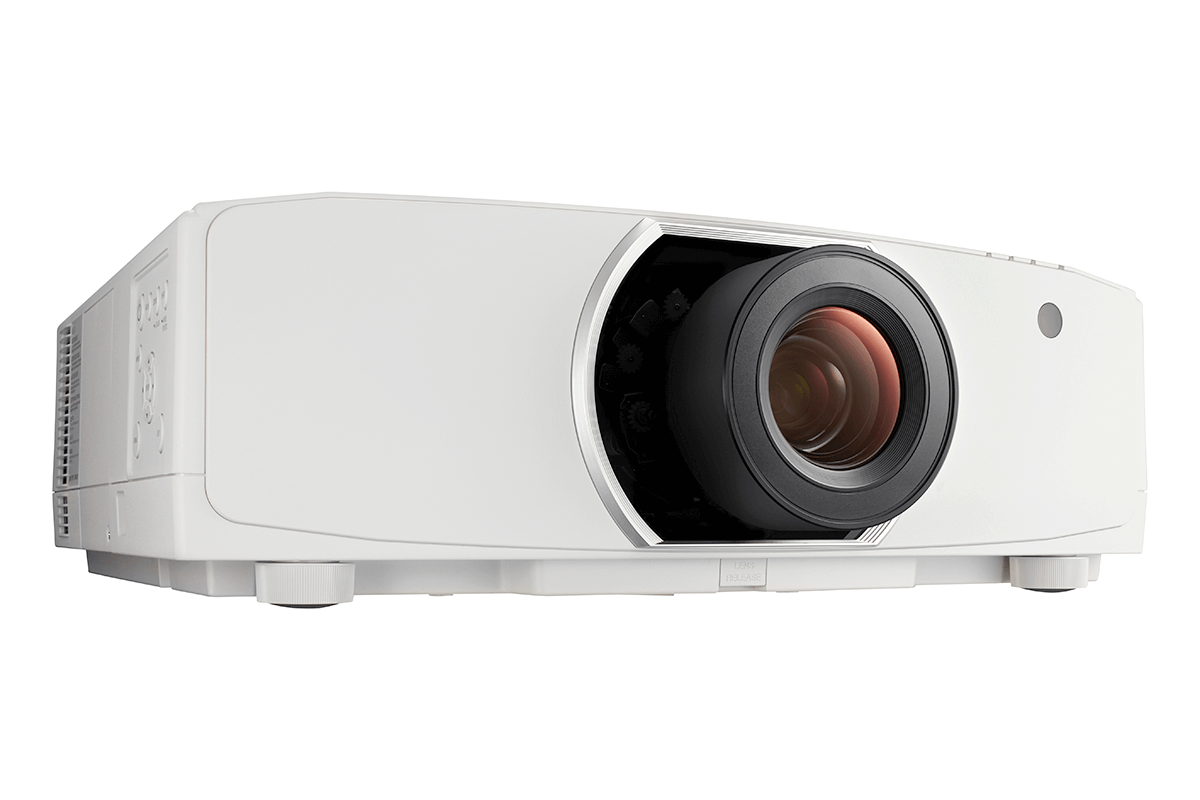

NEC PA653UG LCD Projector - extraordinary visualisation, brilliant colours
Quantity:
NEC PA653UG LCD Projector - extraordinary visualisation, brilliant colours
The compact 6,500 ANSI lumen LCD projector with WUXGA resolution not only trumps the competition with its unique colour processing technology, but also in its outstanding installation capabilities where motorized lens shift, focus and zoom makes setup effortless.
The unique HDBaseT-out interface enables multiple projector daisy chaining via cost efficient network cables to a single source helping to reduce installation costs.
Management of the latest copyright protocol to play 4k and Ultra HD Blu-ray content whilst the long lamp life and even longer filter life earn a most attractive Total Cost of Ownership.Incredible visualisation capabilities-impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking
Brilliant colours & superb dynamic contrast
If extraordinary visualisation, brilliant colours and superb dynamic contrast is key for your business, then the NEC PA653UG should be your first choice.
The compact 6,500 lumen LCD projector with WUXGA resolution not only trumps the competition with its unique colour processing technology, but also in its outstanding installation capabilities where motorized lens shift, focus and zoom makes setup effortless. The unique HDBaseT-out interface enables multiple projector daisy chaining via cost efficient network cables to a single source helping to reduce installation costs. Like a multi-tool, the essential features continue with management of the latest copyright protocol to play 4k and Ultra HD Blu-ray content whilst the long lamp life and even longer filter life earn a most attractive Total Cost of Ownership.
All in all the NEC PA653UG projector is perfectly suited for meeting-, lecture- and seminar-rooms in corporate and higher education installations.
Benefits
- Cinema Quality Visualisation – enjoy excellent picture quality even in bright ambient light conditions with unique picture & colour processing technology (up to up to 4K/60Hz) based on the latest NEC scaler chip.
- Hassle-free remote adjustment – motorized lens shift, focus and zoom allows easy and flexible setup without the need for cumbersome physical access to the projector.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.
- Cost conscious & powerful cabling – with just CAT6 network cabling, transfer content over up to 100m using HDBaseT connectivity standard. Supply multiple projectors with one source and benefit from the unique HDBaseT-out daisy-chain interface.
- Impress with brilliant colours & contrast – astound your audience as the projector processes a wider colour space with Rec2020 to Rec709 colour conversion and higher dynamic contrast supporting HDR10 standard via HDMI interface.
- Peace of mind copyright protected content – let the projector manage copyright protection and present 4k and Ultra HD Bluray content via the HDMI interface.
Specifications
| Image | |
| Projection Technology | 3LCD Technology |
| Native Resolution | 1920x1200 |
| Aspect Ratio | 16:10 |
| Contrast Ratio (typ.) | 8000:1 |
| Brightness [Lumen] | 6500 |
| Light Source | Lamp |
| Lamp Life | 4000 |
| Lens | 3 motorized lens options; 5 manual lens options |
| Lense Adjustment | Motorized and manual (depending on lens) |
| Keystone correction | +/- 40° manual horizontal / +/- 40° manual vertical |
| Projection Factor | depending on lens selection (std. option NP41ZL at 1.3-3.02:1) |
| Projection Distance [m] | 0.7 – 50.9 |
| Screen Size (diagonal) [cm] / [inch] | (best performance range); Maximum: 1,270 / 500" |
| Zoom | Motorized and manual (depending on lens) |
| Focus Adjustment | Motorized and manual (depending on lens) |
| Supported Resolution | 1920x1080 1920x1200 4096x2160 1280x720 2048x1080 720×576 2560x1600 720x480 |
| Frequency | Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 48-120 Hz |
| Connectivity | |
| RGB (analog) Input | 1 x Mini D-sub 15-pin, compatible to component (YPbPr) |
| Digital Input | 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2 |
| Digital Output | 1 x HDBaseT supporting HDCP 2.2 |
| Audio Input | 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support |
| Audio Output | 1 x 3.5 mm Stereo Mini Jack (variable) |
| Control Input | 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet |
| LAN | 1 x RJ45 |
| USB | 1 x Type A (USB 2.0 high speed) |
| 3D Sync Output | 1 x Mini DIN 3pin |
| Remote Control | |
| Remote Control | Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Source Select; Test Picture; Zoom/Focus and Lens Shift Control |
| Electrical | |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption [W] | 482 (Normal) / 376 (Eco) 1 (Network Stand-by) / 0.26 (Stand-by) |
| Mechanical | |
| Dimensions (W) [mm] | 499 |
| Dimensions (H) [mm] | 163.7 |
| Dimensions (D) [mm] | 406 |
| Weight [kg] | 10-15 |
| Fan Noise [dB (A)] | 33 / 39 (Eco / Normal) |
| Environmental Conditions | |
| Operating Temperature [°C] | 5 to 40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Temperature [°C] | -10 to 50 |
| Storage Humidity [%] | 20 to 80 |
| Ergonomics | |
| Safety and Ergonomics | CE EAC ErP RoHS TUEV Type Approved |
| Additional Features | |
| Special Characteristics | 3D ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Contrast Ratio 10000:0 with Iris; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Long Life Lamp; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 5,000 hrs Light Source Life; Virtual Remote for direct PC control |
| Green Features | |
| Energy Efficiency | ECO scheduler Intelligent Power Management Less than 0.3W Stand-By power Longer Light Source Life Software scheduling Timer-Function |
| Ecological Materials | Downloadable manuals 100% recyclable packaging |
| Ecological Standards | ErP compliant |
| Warranty | |
| Projector Warranty | 5 years conditional warranty |
| Light Source Warranty | 6 months, max. 1000 hrs |
| Shipping Content | |
| Shipping Content | Power Cable User Manual Projector Quick Setup Guide IR Remote Control |
| Optional Accessories | |
| Optional Accessories | Air Filter (NP-06FT) 8 optional bayonet lenses Cable Cover (NP10CV) Lamp (NP42LP) |
| Lenses - motorized | NP40ZL (0.79-1.11:1) NP41ZL (1.3-3.02:1) NP43ZL (2.99-5.93:1) NP44ML (0.32:1) |
| Lenses - manual | NP11FL (0.79:1) NP12ZL (1.16-1.52:1) NP13ZL (1.46-2.95:1) NP14ZL (2.9-4.68:1) NP30ZL (0.79-1.04:1) |
